This highly integrated drive module (2.2 inches) combines a high-precision reducer with a compact driver-motor-wheel unit, supporting standard CANopen communication, simplifying installation specifically for industrial wheeled robots. The low-backlash gearbox significantly improves motion control positioning accuracy while reducing noise and vibration.
Features
- Highly integrated – The driver, motor, reducer, and wheel are combined into a compact structure, facilitating system downsizing.
- High mounting accuracy – Simple and precise mounting method ensures superior control accuracy.
- High reliability – As an integrated module, only external power and communication cables are required, offering excellent anti-interference performance and improving overall vehicle system stability.
- Compatible design – Communication and operation modes are consistent with Kinco standard products, enabling seamless switching.
- Good maintainability – A single supplier for the integrated product simplifies maintenance, reduces supply chain complexity, and lowers after-sales costs.

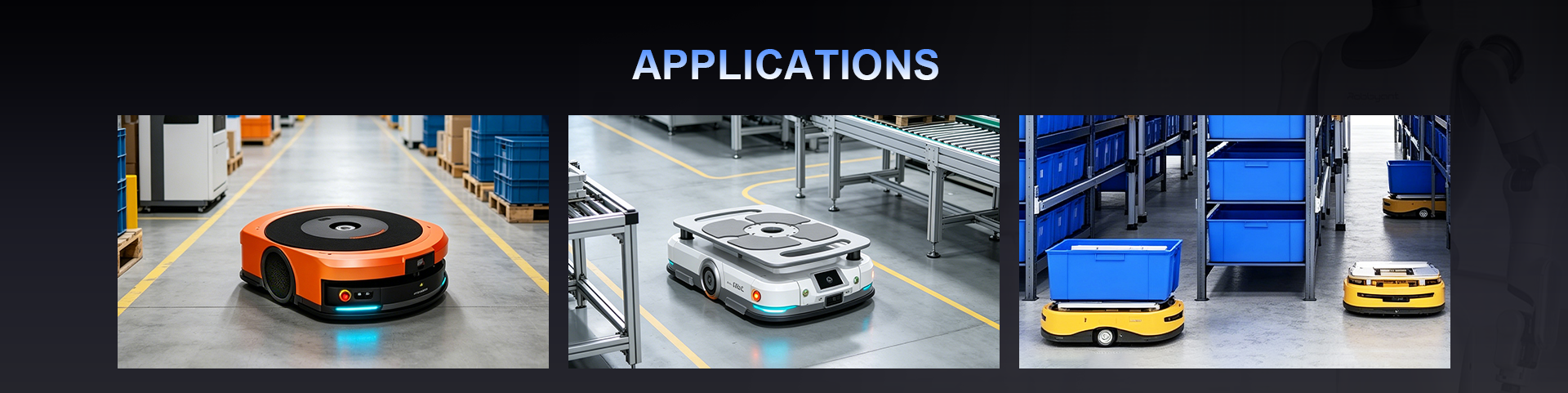

iWMC integrated servo wheel are widely used in
Various types of mobile robots ( AMRs, AGVs, etc. ) with payloads ranging from 50kg to 200kg
Specifications
| iWMC Integrated Servo Wheel Model | iWMC05606-00450-A150-M■DT-L iWMC05606-00450-A150-M■DT-R | iWMC05606-00850-A150-M■DT-L iWMC05606-00850-A150-M■DT-R | iWMC05710-01230-A130-M■DT | iWMC05710-01230-A150-M■DT | |
| Power Supply（ VDC ） | 24VDC〜60VDC | ||||
| Logic Supply（ VDC ） | 24VDC | ||||
| Motor shaft output power (W) | 200 | 400 | 400 | 400 | |
| Rated current In（ Arms ） | 6 | 10 | 10 | 10 | |
| Rated RPM nN (rpm) | 3000 | 3000 | 3000 | 3000 | |
| Rated Torque Tn (N·m) | 0.64 | 1.27 | 1.27 | 1.27 | |
| Max currentIm（ Arms ） | 18.2 | 33.9 | 32.1 | 32.1 | |
| Brake Holding Torque T (N·m) | 2 | 2 | 2 | 2 | |
| Whole Machine | Rated power (W) | 190 | 379 | 379 | 379 |
| Rated Linear Speed（m/s） | 3.9 | 3.9 | 2 | 2.3 | |
| Max Linear Speed （ m/s ） | 5.2 | 5.2 | 2.3 | 2.7 | |
| Rated Torque Tn （N·m） | 3.6 | 7.2 | 12 | 12 | |
| Peak Torque Tn (N·m) | 10.9 | 21.7 | 36.1 | 36.1 | |
| Tire Diameter （ mm ） | 150 | 150 | 130 | 150 | |
| Tire Width（ mm ） | 40 | 40 | 35 | 35 | |
| Tire Material | Polyurethane | Polyurethane | Polyurethane | Polyurethane | |
| Tire Hardness Rating | 73A | 73A | 85 ± 2A | 85 ± 2A | |
| Max radial force N | 1500 | 1500 | 2500 | 2500 | |
| Max axial force N | 280 | 280 | 500 | 500 | |
| Energy Consumption Braking | External braking resistor is required ( depending on the operating conditions, mainly used for rapid starting and stopping ) | ||||
| Energy Consumption Braking Voltage Absorption Point | None | ||||
| Overvoltage alarm point | DC68V ± 2V | ||||
| Undervoltage alarm point | DC18V ± 2V | ||||
| Input Specifications | iWMC05606 2 digital inputs ，iWMC05710 4 digital inputs ；Common COMI terminal , High level: 12.5-30VDC , Low level: 0-5VDC ,Maximum frequency: 1KHz ,Input impedance: 5KΩ | ||||
| Output Specifications | 1 digital output common COMO terminal, Maximum output current: 100mA | ||||
| Brake | Built-in brake and control circuit | ||||
| Forced Unlock Interface | 1-way forced unlock interface, only for use when there is no power input to the servo wheel | No external forced release interface | |||
| RS485 Debug Port | Maximum support for 115.2Kbps baud rate | ||||
| CAN BUS | Maximum support for 1Mbps baud rate, CANopen protocol can be used to communicate with the controller | ||||
| Noise | <65dB | ||||
| Cooling Methods | Natural cooling & Body-assisted cooling | ||||
| Operating Environment | Operating Temperature | -20°C ~ +40°C | |||
| Storage Temperature | Short-term storage (within 1 month)：-20℃ ~ +65℃; Long-term storage (within 1 month)：-10℃ ~ +55℃ | ||||
| Humidity (non-condensing) | 90%RH below | ||||
| Protection Level | IP54 | ||||
| Altitude | The rated working altitude is up to 1000m above sea level. For working altitudes above 1000m, a reduction of 1.5% is required for every 100 meters of rise in altitude, with a maximum working altitude of 3000 meters above sea level | ||||
| Atmospheric Pressure | 67kpa〜106kpa | ||||
