FUTURE Series 2 Human Machine Interface 10.1′ Quad-core Designed for High-end Equipment Industry

$460.00

SKU: F2100E2 (UL) Category: Tag:

Trade Terms: USA — DDP, Rest of the region — DAP

  • Description

    FUTURE F2100E2 HMI Quad-core Designed for High-end Equipment Industry - 1
    FUTURE F2100E2 HMI Quad-core Designed for High-end Equipment Industry - 2
    FUTURE F2100E2 HMI Quad-core Designed for High-end Equipment Industry - 6
    FUTURE F2100E2 HMI Quad-core Designed for High-end Equipment Industry - 5
    FUTURE F2100E2 HMI Quad-core Designed for High-end Equipment Industry - 3
    FUTURE F2100E2 HMI Quad-core Designed for High-end Equipment Industry - 4

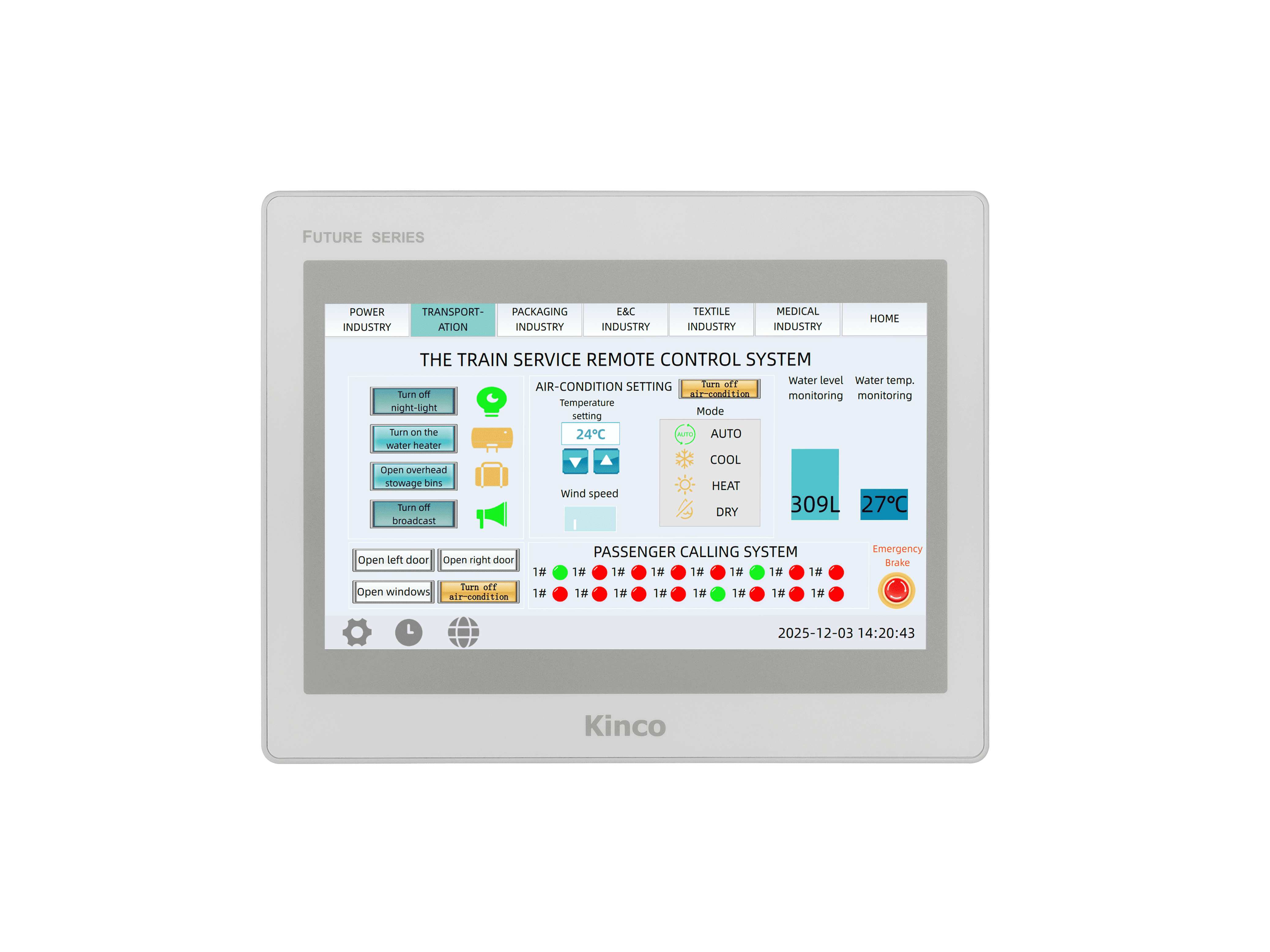

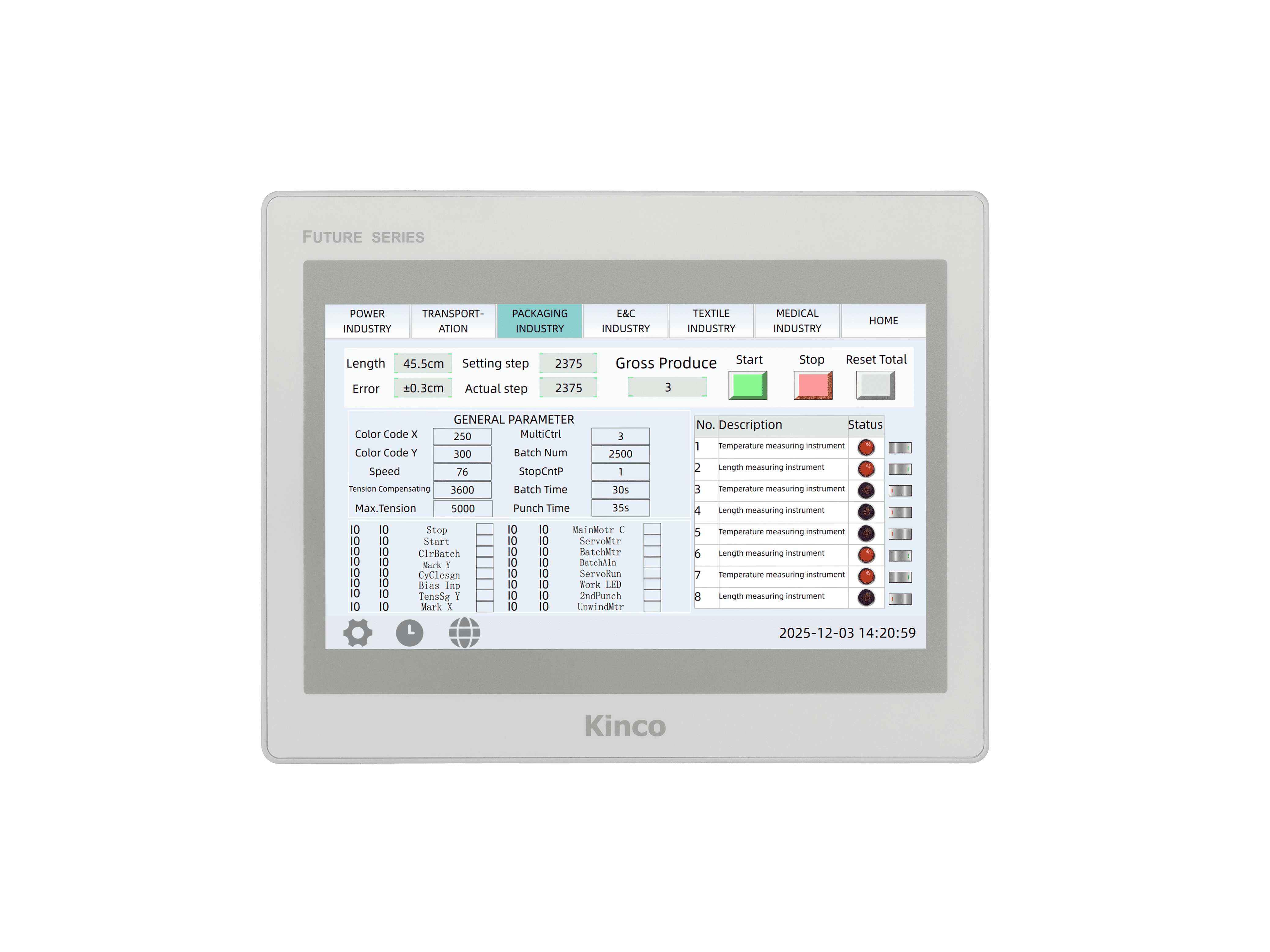

    The 10.1-inch HMI F2100E2 (UL) features a 1024*600 display with 16.77 million true colors and a near-full-view-angle design, delivering clear and vivid visualization for industrial applications.

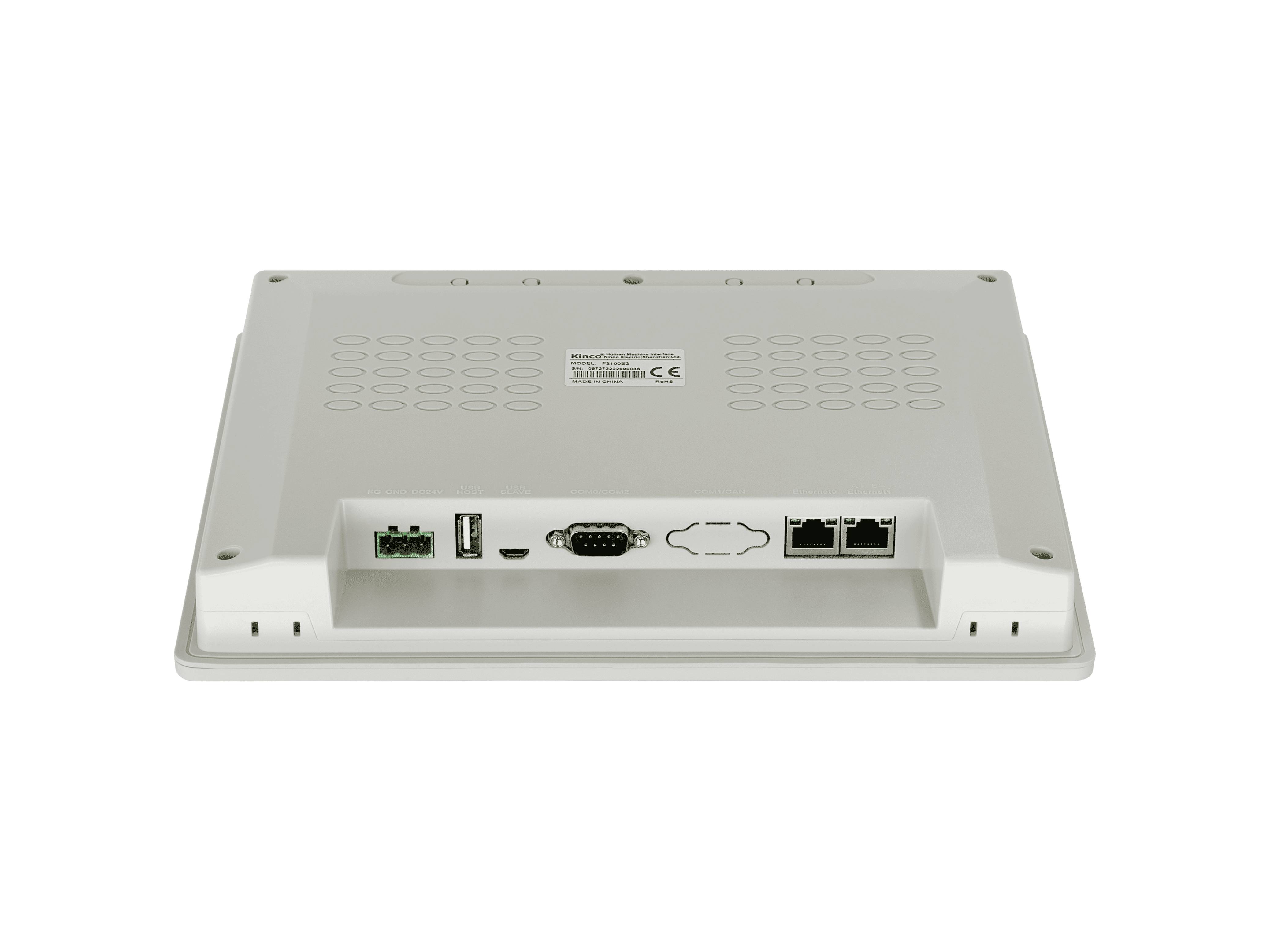

    Powered by a quad-core 1.8 GHz ARM processor with 1 GB RAM and 8 GB eMMC storage, it provides reliable performance and flexible connectivity through dual Ethernet and dual serial ports, together with a built-in RTC and recipe memory.

    Supporting the latest KincoDToolsPro configuration software and the integrated EdgeAccess2 Industrial Internet Remote Maintenance Platform, it enables efficient engineering and lifetime-free remote monitoring.

    With an IP65-rated front panel, built-in isolated power supply, an operating temperature range of -10 to 60℃, and CE & UL certifications, the HMI is designed for dependable industrial automation applications.



    All categories
    All tags
    Title Categories Tags Date Size Type Download
    Datasheet Of F2100E2UL HMI EN 20260716 HMI Datasheet September 2, 2026 1.8 MB PDF Download
    Datasheet Of F2100HE2 PX HMI EN 20260811 HMI Datasheet September 2, 2026 2.0 MB PDF Download
    EdgeAccess 2 Download Manual En GK hmi and plc HMI Software September 2, 2026 5.8 MB PDF Download
    EdgeAccess Viewersetup V1.4.0 GK hmi and plc HMI Software September 2, 2026 37.7 MB ZIP Download
    Kinco DToolsPro V1.10.0.2 SetupBuild260821 HMI Software September 30, 2026 1.1 GB ZIP Download

    Specifications

    Model / SpecificationF2100E2 (UL)
    Performance
    Display Size10.1″ TFT
    Display Area (W x H)222.72 x 125.28 mm
    Resolution1024*600
    Colors16.7 million
    Viewing Angle (T/B/L/R)60/60/70/70
    Contrast Ratio500:1
    BacklightLED
    Brightness350 cd/m²
    Backlight Lifetime50000 hours
    Touch Panel4-wire resistive type
    CPUQuad-core ARM 1.8GHz
    Memory1GB RAM + 8GB flash
    RTCBuilt-in RTC + 512KB recipe
    Expandable Memory1*USB Host
    Printer PortUSB Host / Serial port
    EthernetLAN0: 10/100/1000Mbps; LAN1: 10/100Mbps
    Program DownloadEthernet port / USB slave / U disk
    Communication PortCOM0: RS232/RS485/RS422; COM2: RS232
    Power
    Input PowerDC18V ~ 28V
    Power Consumption7W@DC 24V
    Voltage Interruption Immunity<3ms
    Insulation ResistanceOver 50MΩ@500V DC
    Dielectric Resistance500V AC 1 minute
    Structure
    PCB CoatingYes
    EnclosureEngineering plastic
    Dimensions (W x H x D)271 x 213 x 38 mm
    Cut-out Dimensions260 x 202 mm
    MountingPanel mounting
    Weight1.1 kg
    Environment
    Operating Temperature-10 ~ 60°C
    Operating Humidity0 ~ 90%RH (Non-condensing)
    Storage Temperature-20 ~ 60°C
    Storage Humidity0 ~ 90%RH (Non-condensing)
    Vibration Resistance10 ~ 500Hz, 30m/s², 1 hour each for X, Y, Z directions
    Cooling MethodNatural air circulation
    Certification
    Panel Protection GradeFront panel: IP65
    CE CertificateEN IEC 61000-6-4: 2019, EN IEC 61000-6-2: 2019
    UL CertificateUL 61010-1
    Software
    Configuration SoftwareKinco DToolsPro

  • Featured Specs

    Weight 1.42 kg
    Dimensions 271 × 213 × 38 mm
