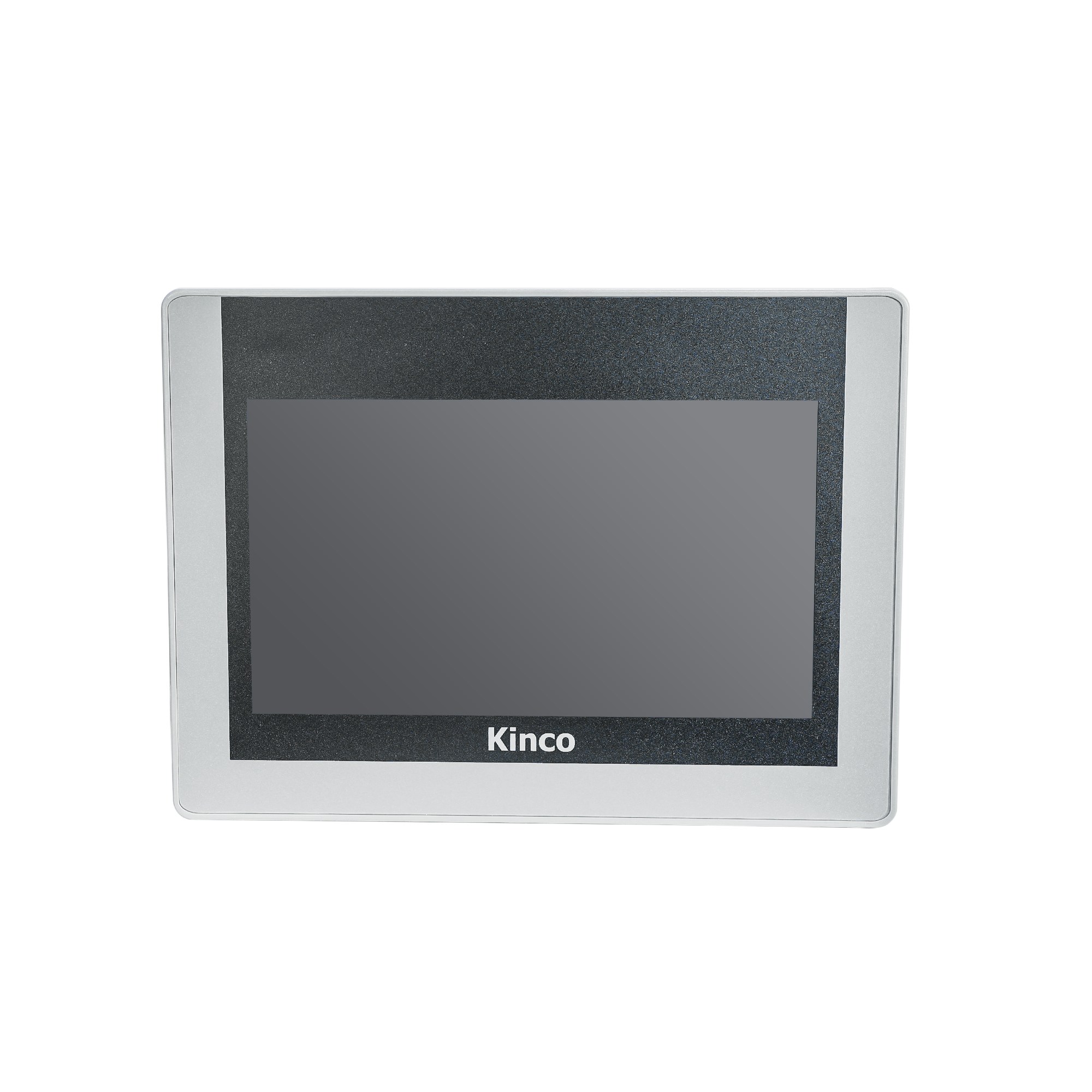

GK Series Integrated Controller HMI and PLC GK2070HE-42DTP 7′ Built-in I/O up to 50

$233.00

SKU: GK2070HE-42DTP Category: Tag:

Trade Terms: USA — DDP, Rest of the region — DAP

  • Description



    GK HMI and PLC all in one for Smart packaging - 1
    GK HMI and PLC all in one for Agricultural automation - 6
    GK HMI and PLC all in one for Smart packaging - 5
    GK HMI and PLC all in one for Utility applications - 2
    GK HMI and PLC all in one for Process control applications - 3
    GK HMI and PLC all in one for Agricultural automation - 4

    The GK2070HE-42DTP features a compact integrated architecture designed for space-efficient machine deployment, combining control and interaction capabilities in a streamlined system design.

    With up to 50 built-in digital and analog I/O points, it provides flexible control capabilities while maintaining an optimized cost-performance balance. The shared Ethernet architecture reduces hardware complexity, while two onboard expansion interfaces support application-oriented scalability.

    Powered by the dual platforms KincoBuilderPro and DToolsPro, the GK2070HE-42DTP provides coordinated software support for simplified engineering and rapid deployment. Its HD display and enhanced memory configuration further improve visualization performance, making it a compact and scalable solution for integrated machine control and interaction.

    All categories
    All tags
    Title Categories Tags Date Size Type Download
    Datasheet Of GK2070HE 42DTP HMI And PLC All In One GK hmi and plc Datasheet September 2, 2026 2.4 MB PDF Download
    EdgeAccess 2 Download Manual En GK hmi and plc HMI Software September 2, 2026 5.8 MB PDF Download
    EdgeAccess Viewersetup V1.4.0 GK hmi and plc HMI Software September 2, 2026 37.7 MB ZIP Download
    KincoBuilderPro Programming Software I V4.3.0.34823 GK hmi and plc Software September 2, 2026 292.8 MB ZIP Download
    User Manual GK2070HE 42DTP HMI And PLC All In One GK hmi and plc User manual September 2, 2026 8.9 MB PDF Download

    Specifications

    Model GK2070HE-42DTP
    Power Specifications
    Rated Power DC 24V (DC 19.2V ~ DC 28.8V)
    PLC Section
    Digital I/O DI*24*DC24V (PNP/NPN); DO*16*DC24V (PNP)
    Analog I/O 2*AI; supports 4~20mA / 0~20mA / 0~5V / 1~5V / 0~10V
    Expansion 2 EXP expansion slots
    EXP0: IV/TC/RD/DI/DO/COM
    EXP1: IV/TC/RD/DI/DO/CAN
    Ethernet 10M/100M adaptive (shared for display and control, independent IP)
    Programming Interface Ethernet/RS485/HMI Pass-through
    Serial Port 1*RS485, max. communication rate up to 115.2kbps, isolated
    Supports Modbus RTU master/slave and free protocol communication
    High-speed Inputs 4 channels
    Supports AB-phase pulse input, max. counting frequency: 200kHz
    PWM 4 channels
    Edge Interrupts 4 channels, I0.0-I0.3, supports rising/falling edge interrupts
    Program Capacity 60kB
    Data Capacity 16kB
    Data Retention 4kB
    Programming Software KincoBuilder Pro
    HMI Section
    LCD Size 7″ TFT LCD
    Resolution 1024*600
    Display Colors 16.77M
    Brightness 450cd/m²
    Backlight LED
    Touch Screen 4-wire
    Precision resistive touch
    LCD Lifetime > 30000h
    Processor Dual-core A7 1GHz
    Ethernet 10M/100M adaptive (shared for display and control, independent IP)
    Memory Dual-core A7 1GHz CPU + 256MB RAM
    Recipe Memory Built-in real-time clock
    External Storage USB HOST (USB-A)
    Program Download USB SLAVE (USB-C)/Ethernet/USB HOST (USB-A)
    Printer Port USB SLAVE (USB-C)/Ethernet/USB HOST (USB-A)
    Configuration Software DToolsPro + EdgeAccess2.0 + Miot
    Others
    Dimensions 204*150*62.1mm (including terminals)
    Cutout Dimensions 192*138mm
    Protection Rating Front panel IP65
    Certification
    CE Compliant

  • Featured Specs

    Weight 0.62 kg
    Dimensions 204 × 150 × 62.1 mm
