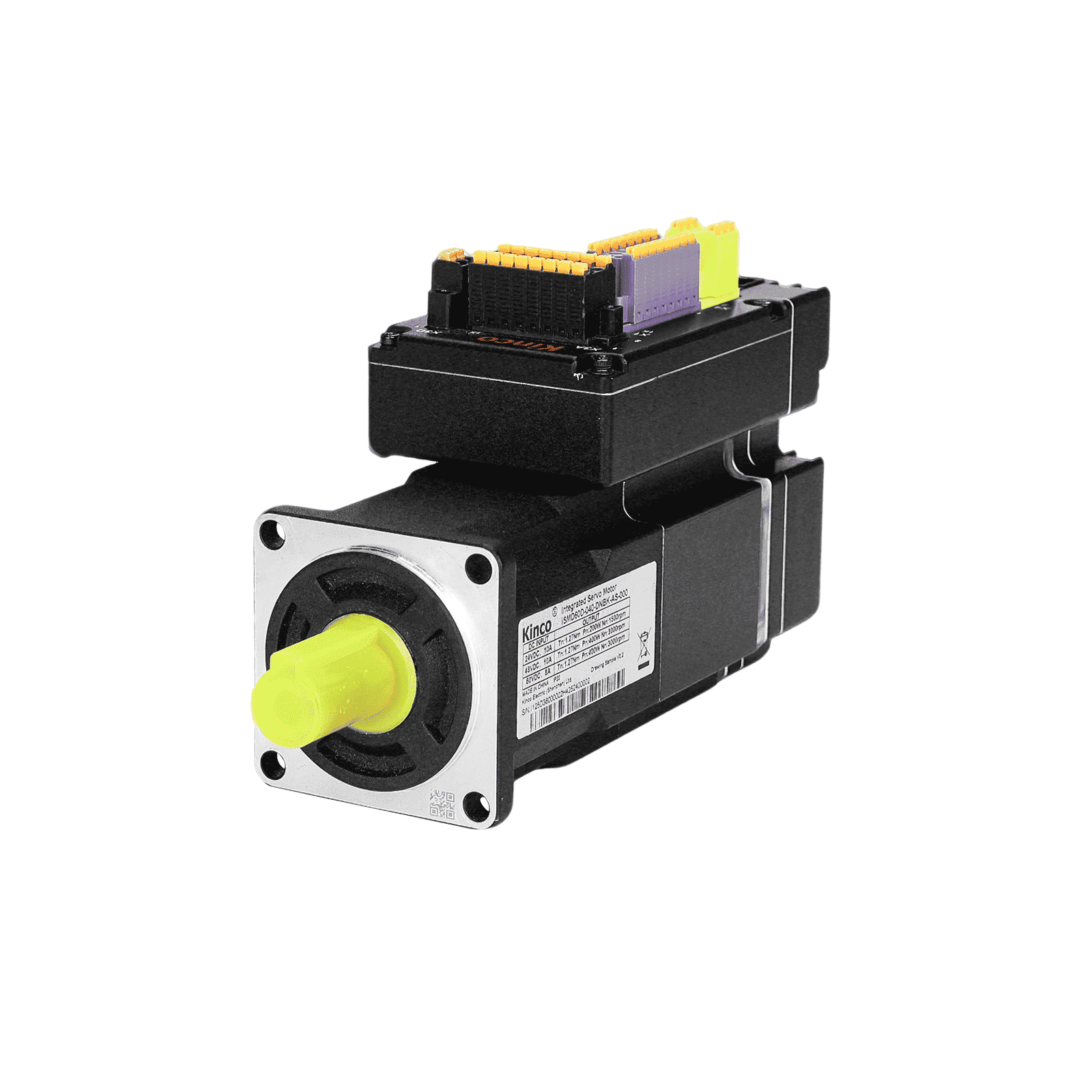

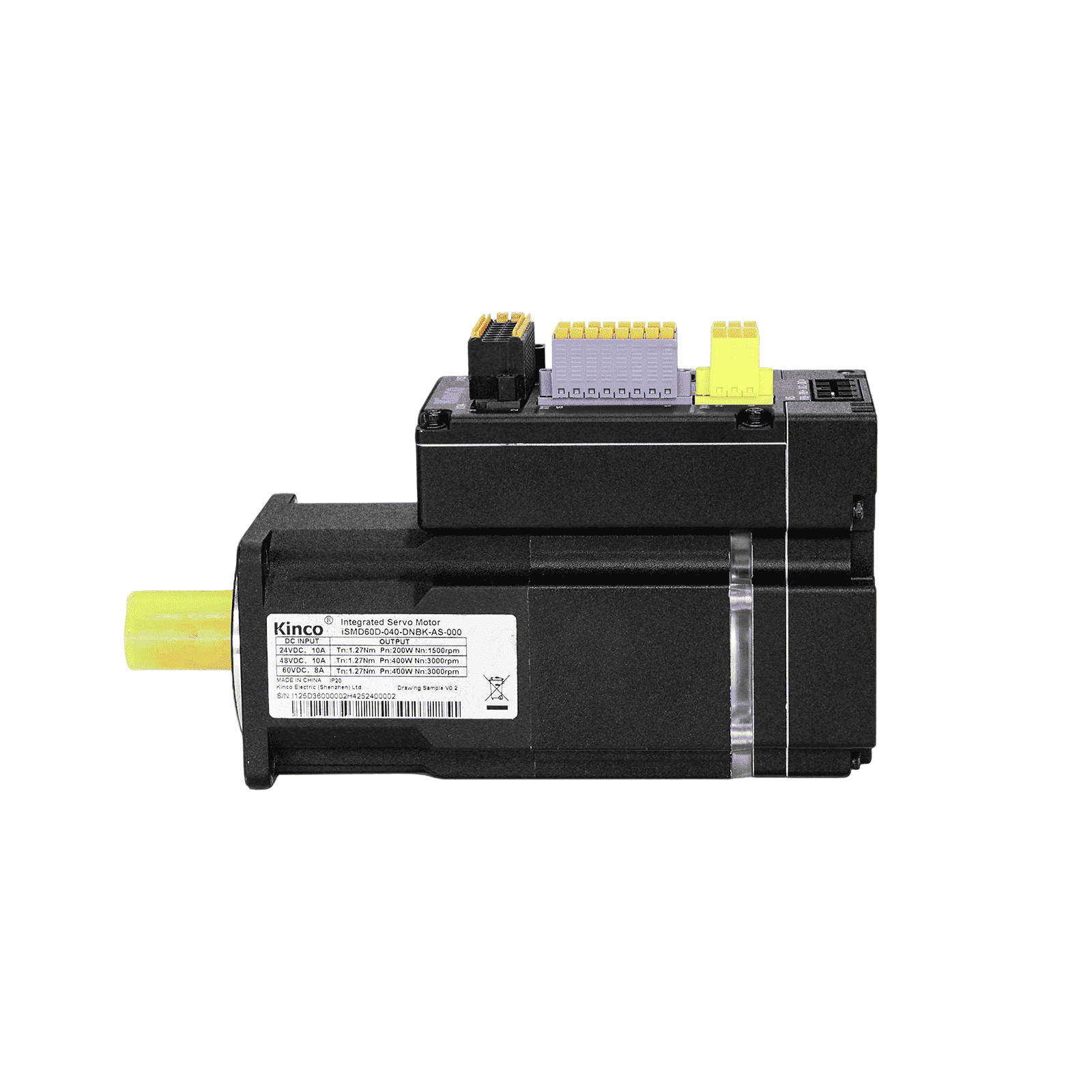

iSMD Series Integrated All-in-One Unit DC Servo Drive and Motor for Robot 60/80mm Flange Support STO (RS485, CANopen, IP20)

Price range: $303.00 through $387.00

somdn_product_page
SKU: iSMD□0D-040-DQ■K-AS-000 Category: Tag:

Trade Terms: USA — DDP, Rest of the region — DAP

  • Description

    integrated servo motor all in one for mobile robot - iSMD IP20

    iSMD integrated servo system - 3

    iSMD integrated servo system - 4

    This integrated all-in-one servo is 20% smaller than split designs, cutting installation and total cost. It offers S1 continuous duty, 3× overload, and high-precision encoders (17/23‑bit) with battery‑free no‑homing restart. Supports major fieldbuses. Debug via Type‑C. STO safety option available.

    Check Specs & product files

    Features

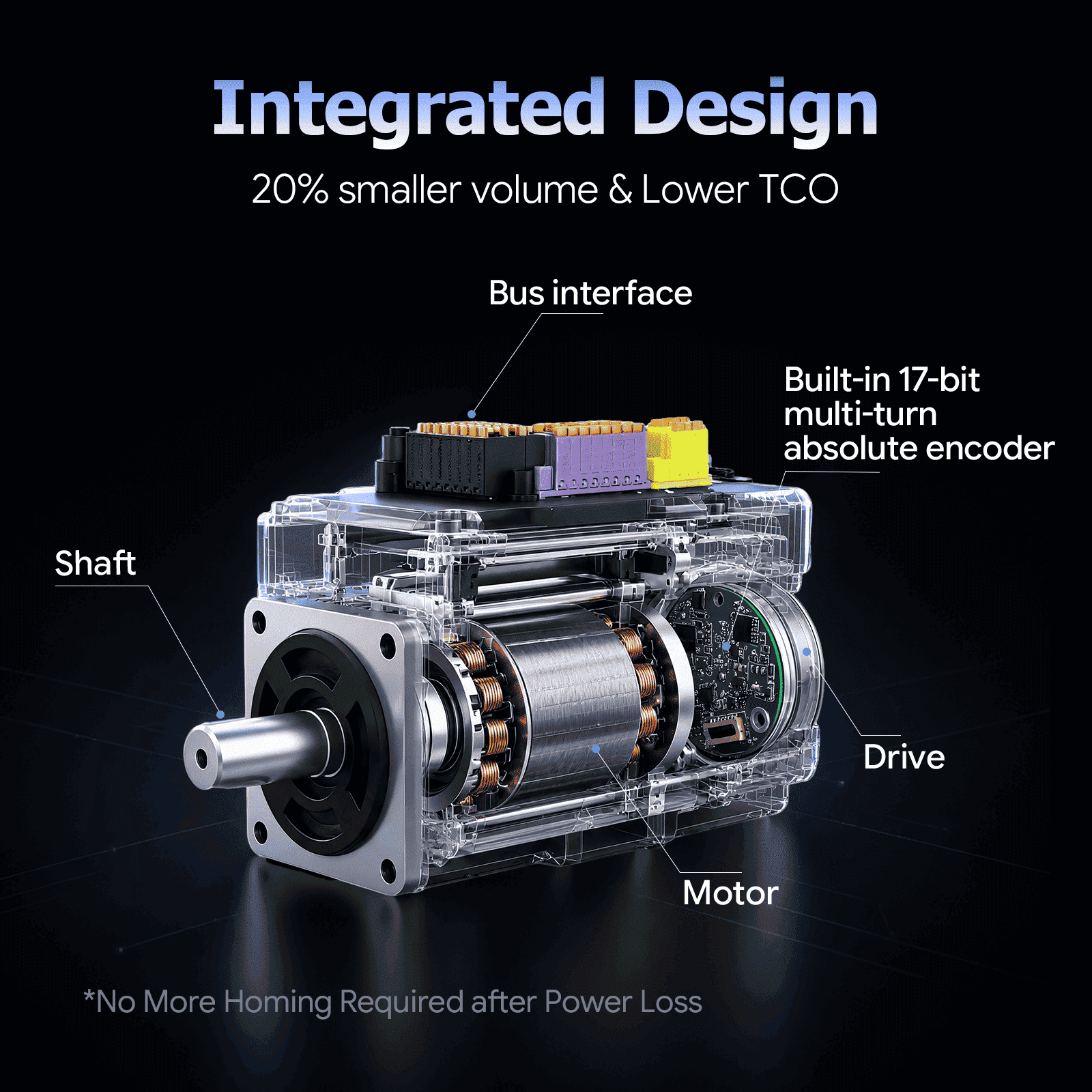

    · Integrated all-in-one design reduces volume by ~20% vs. split-type servos, minimizes cabling and assembly, and lowers TCO.

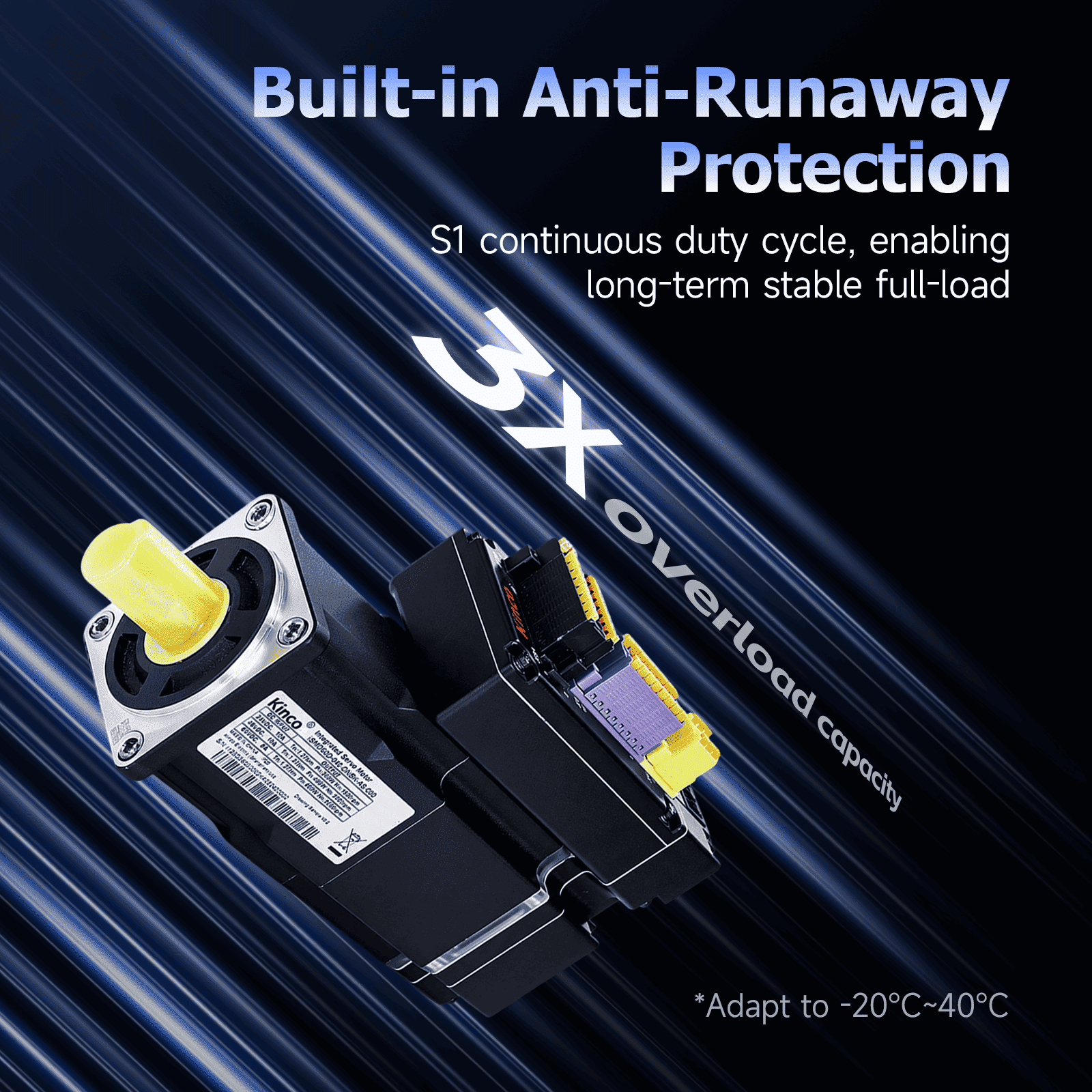

    · S1 continuous duty rating with 3× short-term overload capacity ensures stable heavy-load operation and faster production cycles.

    · High-precision encoder (17‑bit incremental/absolute; optional 23‑bit multi‑turn absolute) provides battery‑free position memory and no homing on restart.

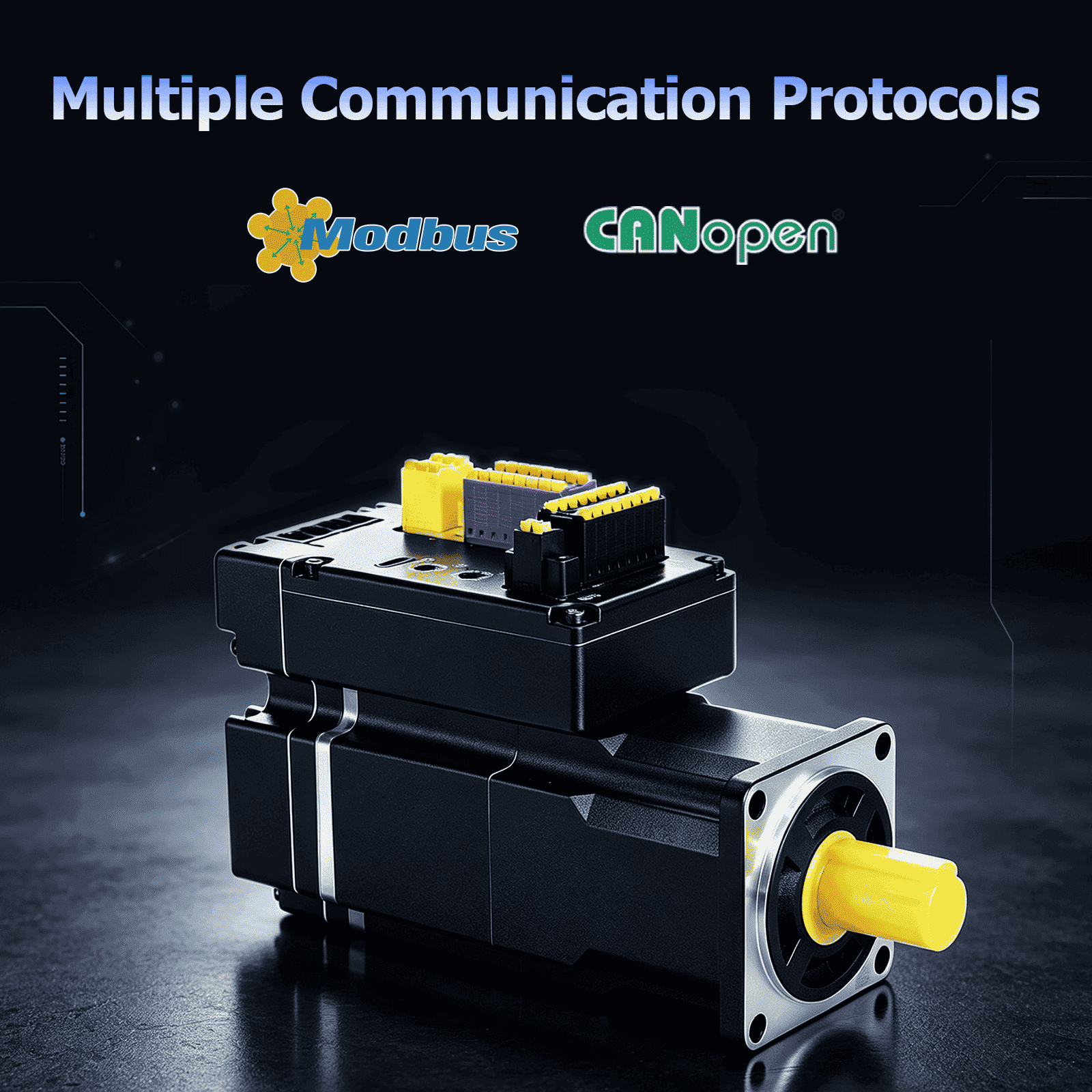

    · Supports Modbus and CANopen for seamless compatibility with mainstream controllers and flexible networking.

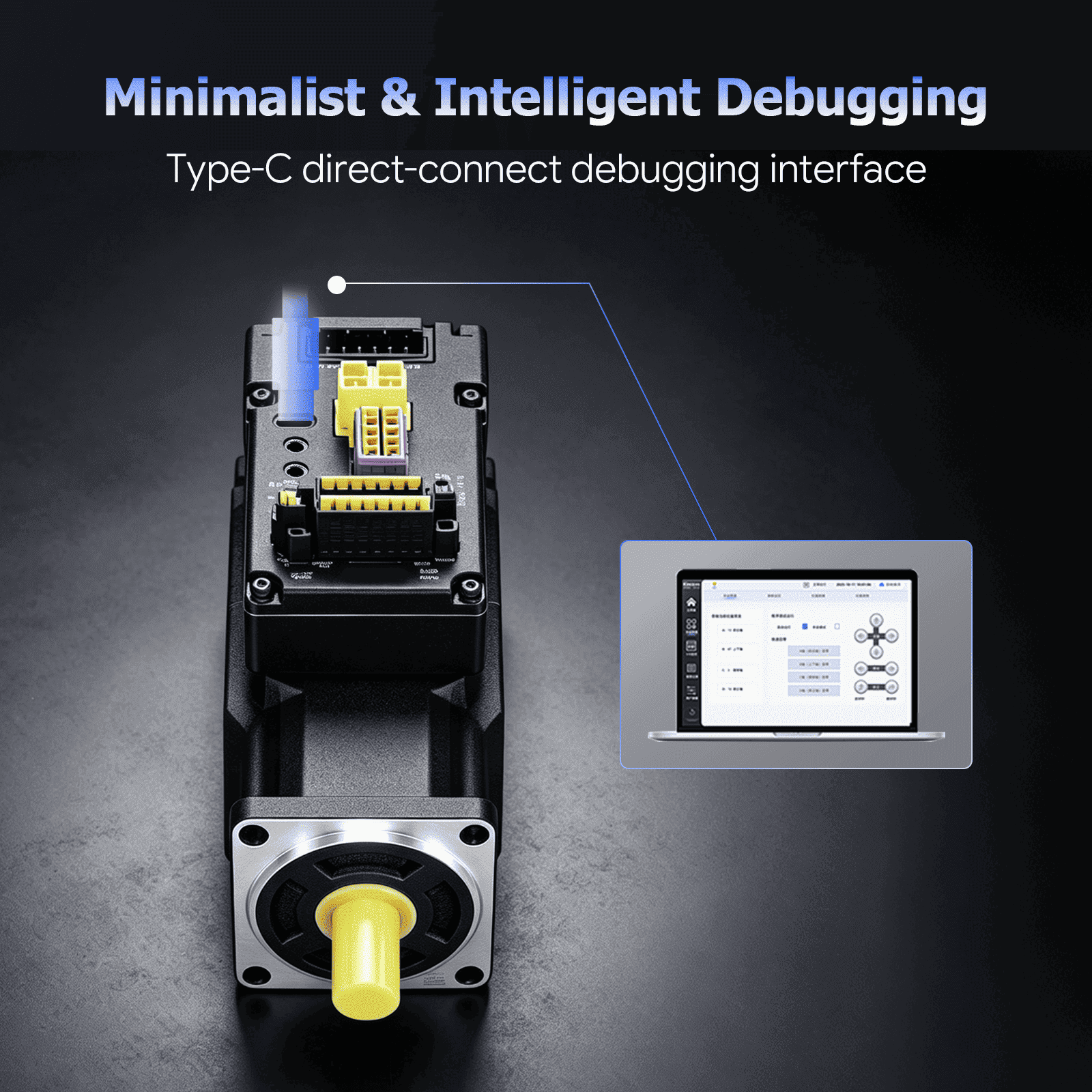

    · Type‑C wired and built‑in Bluetooth wireless debugging (PC and mobile) simplify maintenance in complex scenarios, doubling debugging efficiency.

    · STO function (certification in progress) with independent safety circuit enables emergency torque cut‑off for enhanced operator safety.

    All categories
    All tags
    Title Categories Tags Date Size Type Download
    CAD 2D Models Of ISMD60D 040 DQAK AS 000 1V4 iSMD servo motor CAD & 2D models September 28, 2026 309 KB PDF Download
    CAD 2D Models Of ISMD60D 040 DQBK AS 000 1V5 iSMD servo motor CAD & 2D models September 28, 2026 358 KB PDF Download
    CAD 2D Models Of ISMD80D 075 DQAK AS 000 1V4 iSMD servo motor CAD & 2D models September 28, 2026 343 KB PDF Download
    CAD 2D Models Of ISMD80D 075 DQBK AS 000 1V0 iSMD servo motor CAD & 2D models September 28, 2026 401 KB PDF Download
    CAD 2D Models Of ISMD80D 075 DQBK EA 000 P000 V1.0 iSMD servo motor CAD & 2D models September 28, 2026 702 KB PDF Download
    Datasheet Of ISMD High Performance Integrated Servo Drive Motor K4E45 20260724 iSMD servo motor Datasheet August 3, 2026 16.3 MB PDF Download
    User Manual ISMD Low Voltage Servo Integrated Motor20260303 iSMD servo motor User manual August 3, 2026 7.9 MB PDF Download
    Title Categories Tags Date Size Type Download

    Specifications

    Model parameter iSMD60D-040-DQ■K-AS-000 iSMD80D-075-DQ■K-AS-000
    Input Power supply 48VDC,10A

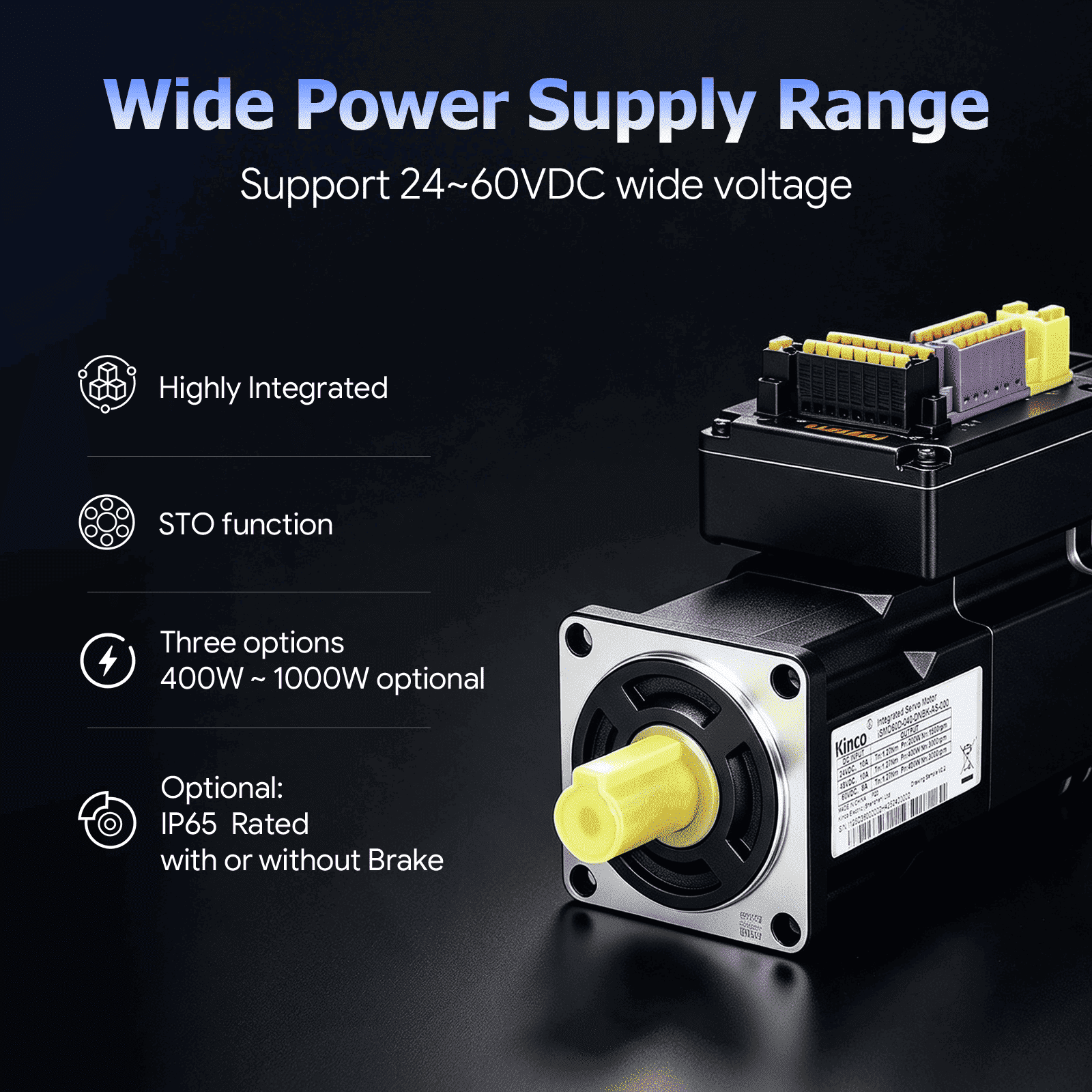

    Allowable fluctuation range 24V~60V    		 48VDC,17A
    Allowable fluctuation range 24V~60V
    Logic power Supports STO function model: 24V, logic power is isolated power supply, isolation voltage 500VDC
    Complete machine Max continuous
    output current (Arms)    		 10 16.2
    Peak current (Peak) 48AP 100AP
    Rated power (W) 400 750
    Rated speed (rpm) 3000 3000
    Max speed (rpm) 4000 4000
    Max torque Tn (N·m) 1.27 2.39
    Max torque Tm (N·m) 3.81 7.17
    Rotary inertia (Kg·cm²) 0.48 1.66
    0.49 (With brake) 1.72 (With brake)
    Brake holding torque (N·m) 2 4
    Brake rated power (W) 7.6 11.5
    Brake rated voltage (VDC) 24 24
    Duty S1 (Continuous duty), based on the measured value of SMK60D_400W and SMK80D_750W ;
    S3 (60%-10min), based on the measured value of iSMD_1000W.
    Energy consumption brake Need external brake resistance（iSMD60D≥5Ω/100W；
    iSMD80D≥5Ω/400W）
    Energy consumption brake voltage absorption point 63V±2V(default)
    Overvoltage alarm voltage 68V±2V(default)
    Undervoltage alarm voltage 16V±2V(default)
    Cooling mode Natural cooling
    Input specification Digital input 3-channel DI, Common COMI port, High level: 12.5V~30VDC, Low level: 0~5VDC, Max frequency: 1KHz
    Min turn-on voltage＜11V, Max cut-off voltage＞5V, Max input voltage: 30V, Complies with IEC61131-2 Type3
    DI2 support probe function, Response time ≤10uS, Input impedance: 5.1K
    Pulse input 2-channel pulse input,Pulse+direction, CCW+CW,phase A+phase B (
    12V〜24V), Max frequency: 500KHz
    It can be multiplexed as 2-channel DI (DI4 and DI5) by software setting
    Min turn-on voltage＜11V, Max cut-off voltage＞5V,Max input voltage: 30V, Complies with IEC61131-2 Type3
    Analog input iSMD_AA/AS model: 1-channel voltage type analog input, 12bit, -10V〜
    +10V, differential connection method
    Output specification 2-channel DO, open collector output, Max control voltage: 30V, Max load current: 100mA
    Type-C Debug special, can use Kinco PC software connection
    STO Applicable to models that support STO function;
    2-channel STO, STO interface can be connected with the safety controller, safety switch, safety sensor, etc., to realize the safety function of the driver
    Input voltage range: 24VDC±15%, Input current: 2.3mA(Type), Logic level standard: IEC61131-2 Type1
    Input resistance: 10kOhm
    Bus function Modbus/RS485 It supports a maximum of 115,200 bps and can communicate with the controller using Modbus RTU
    CANopen It supports a maximum of 1Mbps and can communicate with the controller using CANopen
    Use environment Working temperature -20℃ 〜 +40℃
    Storage temperature Short-term storage (within 1 month): -20 ℃~ +65 ℃
    Long-term storage (over 1 month): -10 ℃ ~ +55 ℃
    Protection class IP20
    Installation site Dust-free, dry, lockable
    Installation method Motor flange installation
    Altitude Less than 3000m, power derating 1.5%/100m between 1000m and 3000m
    Atmospheric 67kpa〜106kpa
    Note：■ = A: Without brake  =B: With brake



    FAQs

    1. Does Kinco have factories?

    Kinco operates 5 offices, 2 factories, and 4 R&D centers.

    2. Where is Kinco located?

    Kinco Inc. is located in San Francisco, with additional offices in Germany, Japan, and Hong Kong supporting sales and operations.

    3. What certifications do Kinco servos hold?

    Most Kinco servo products are CE, RoHS, and UL compliant. Some models are currently undergoing the certification process.

    4. What is Kinco’s core business?

    Kinco specializes in the R&D, manufacturing, and sales of core components for industrial automation and robotics, and also provides integrated hardware and software solutions for digital factory construction.

  • Featured Specs

    Weight 2.8 kg
    Dimensions 160 × 80 × 129.5 mm
