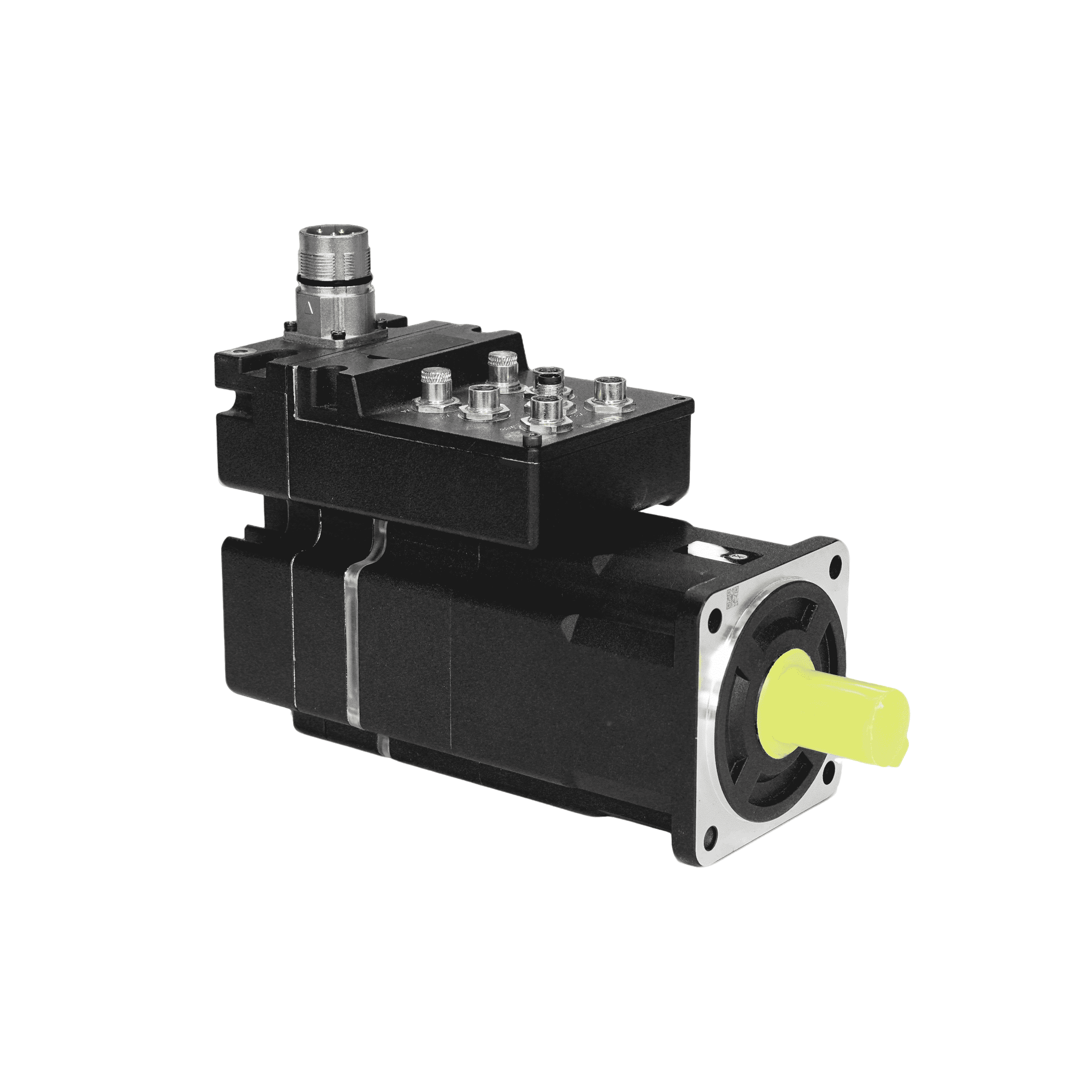

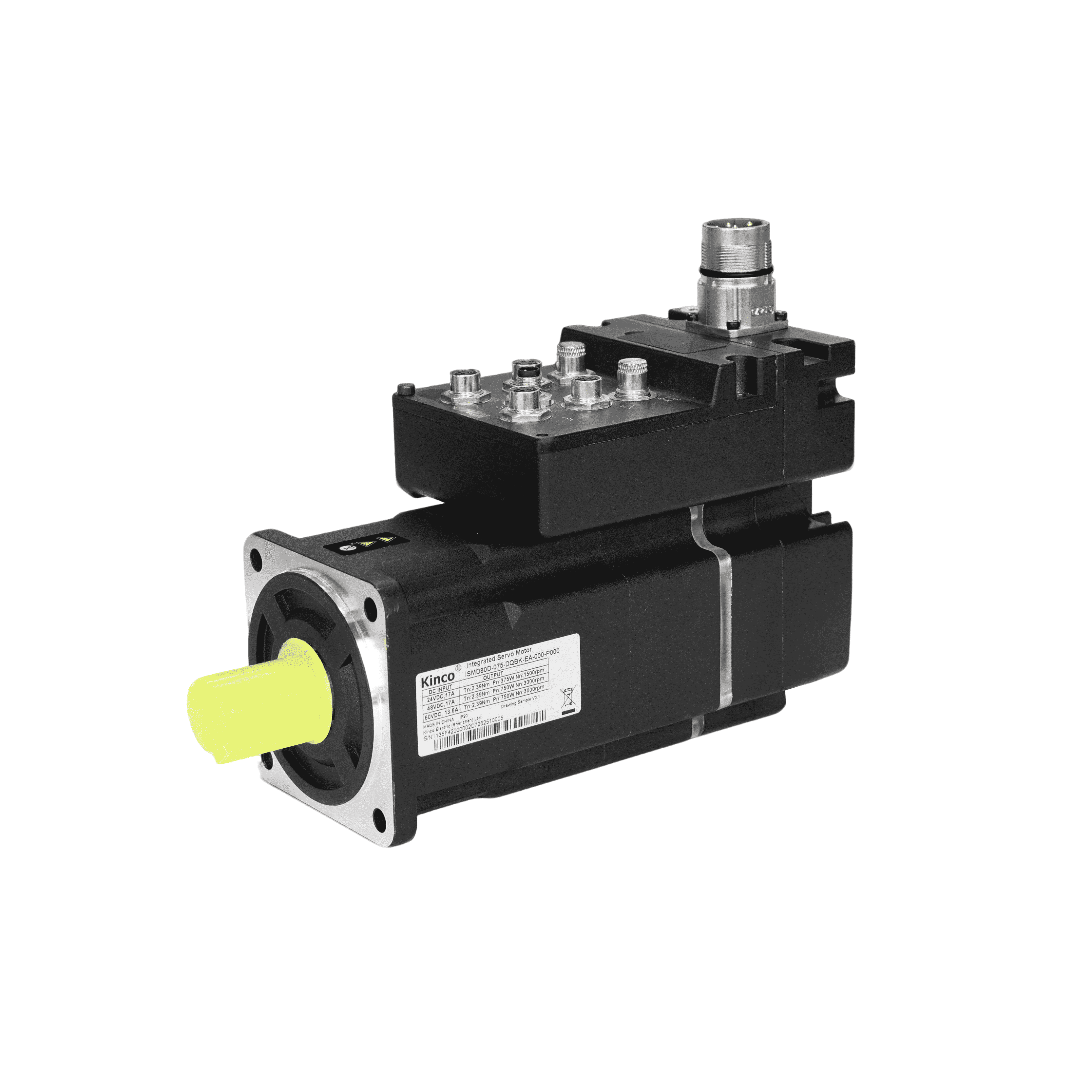

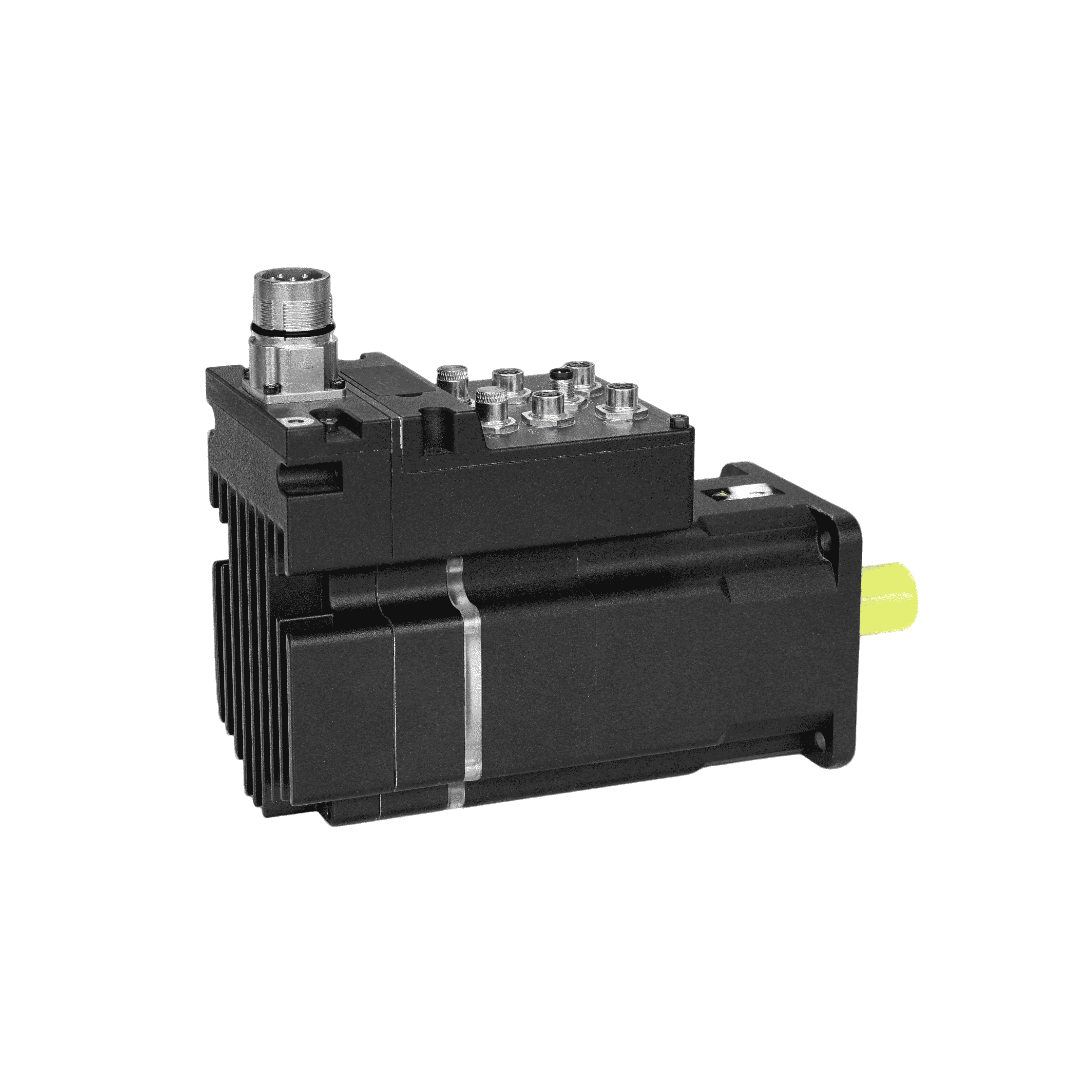

iSMD Series DC Servo Drive and Motor Integrated All-in-One Unit 80mm Flange (750W, IP65 Version)
$408.00
-
Description
This integrated all-in-one servo is 20% smaller than split designs, cutting installation and total cost. It offers S1 continuous duty, 3× overload, and high-precision encoders (17/23‑bit) with battery‑free no‑homing restart. Supports major fieldbuses. Debug via Type‑C or Bluetooth. STO safety option available. IP65 protection ensures durability in harsh environments.
Features
· Integrated all-in-one design reduces volume by ~20% vs. split-type servos, minimizes cabling and assembly, and lowers TCO.
· S1 continuous duty rating with 3× short-term overload capacity ensures stable heavy-load operation and faster production cycles.

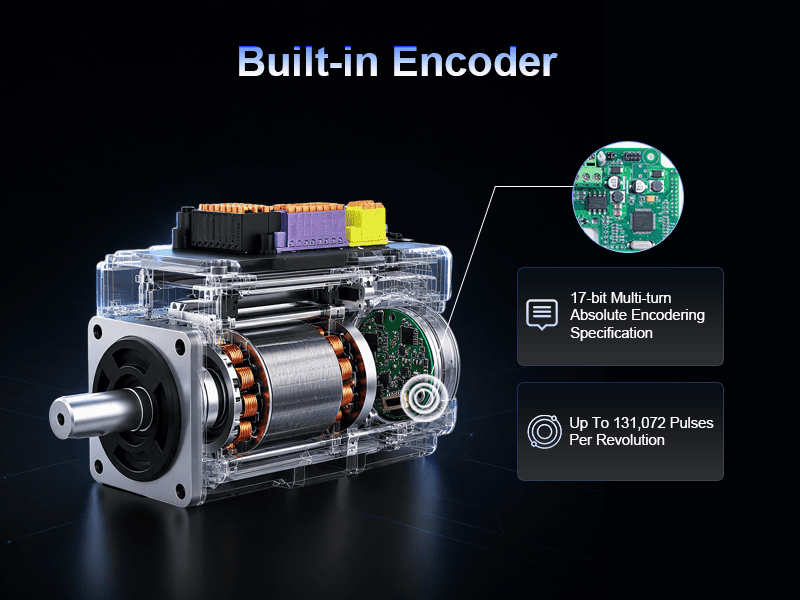

· High-precision encoder (17‑bit incremental/absolute; optional 23‑bit multi‑turn absolute) provides battery‑free position memory and no homing on restart.
· Supports EtherCAT, Modbus, CANopen, and PROFINET for seamless compatibility with mainstream controllers and flexible networking.
· Type‑C wired and built‑in Bluetooth wireless debugging (PC and mobile) simplify maintenance in complex scenarios, doubling debugging efficiency.
· STO function (certification in progress) with independent safety circuit enables emergency torque cut‑off for enhanced operator safety.
· IP65 protection against dust, water, and oil ensures durable performance in harsh environments and extends equipment life.
All categories
All tags
Filtered byTitle Categories Tags Date Size Type Download CAD 2D Models Of ISMD60D 040 DQAK AS 000 1V4 iSMD servo motor CAD & 2D models September 28, 2026 309 KB PDF Download CAD 2D Models Of ISMD60D 040 DQBK AS 000 1V5 iSMD servo motor CAD & 2D models September 28, 2026 358 KB PDF Download CAD 2D Models Of ISMD80D 075 DQAK AS 000 1V4 iSMD servo motor CAD & 2D models September 28, 2026 343 KB PDF Download CAD 2D Models Of ISMD80D 075 DQBK AS 000 1V0 iSMD servo motor CAD & 2D models September 28, 2026 401 KB PDF Download CAD 2D Models Of ISMD80D 075 DQBK EA 000 P000 V1.0 iSMD servo motor CAD & 2D models September 28, 2026 702 KB PDF Download Datasheet Of ISMD High Performance Integrated Servo Drive Motor K4E45 20260724 iSMD servo motor Datasheet August 3, 2026 16.3 MB PDF Download User Manual ISMD Low Voltage Servo Integrated Motor20260303 iSMD servo motor User manual August 3, 2026 7.9 MB PDF Download No documents yet, kindly let us know?
Filtered byTitle Categories Tags Date Size Type Download No documents yet, kindly let us know?
Specifications
iSMD IP65 series Parameter Table
Model parameter iSMD60D-040-DQ■K-E▲-000-PXXX iSMD80D-075-DQ■K-E▲-000-PXXX Input Power supply 48VDC,10A
Allowable fluctuation range 24V~60V48VDC,17A
Allowable fluctuation range 24V~60VLogic power Not support STO function mode:24VDC, with fuse 60V@0.5A
Supports STO function model:24V, logic power is isolated power supply, isolation voltage 500VDCComplete machine Max continuous
output current (Arms)10 16.2 Peak current (Peak) 48AP 100AP Rated power (W) 400 750 Rated speed (rpm) 3000 3000 Max speed (rpm) 4000 4000 Max torque Tn (N·m) 1.27 2.39 Max torque Tm (N·m) 3.81 7.17 Rotary inertia (Kg·cm²) 0.48 1.66 0.49 (With brake) 1.72 (With brake) Brake holding torque (N·m) 2 4 Brake rated power (W) 7.6 11.5 Brake rated voltage (VDC) 24 24 Duty S1 (Continuous duty), based on the measured value of SMK60D_400W and SMK80D_750W ;
S3 (60%-10min), based on the measured value of iSMD_1000W.Energy consumption brake Need external brake resistance module（Model：PRC-69-40-20） Energy consumption brake voltage absorption point 63V±2V(default) Overvoltage alarm voltage 68V±2V(default) Undervoltage alarm voltage 16V±2V(default) Cooling mode Natural cooling Digital input 4-channel DI, can be configured with source/sink input, High level: 12.5V~30VDC, Low level: 0~5VDC Max frequency : 1KHz Min turn-on voltage＜11V, Max cut-off voltage＞5V, Max input voltage: 30V DI2, DI3 support probe function, Response time ≤10uS, complies with IEC61131-2 Type3, Input impedance: 2.7K Output specification 2-channel digital output, software can set active/passive output. For active output, external 24V logic power supply needs to be connected to the power socket terminal (X5). DO1 load current: 200mA, DO2 load current: 100mA, Max control voltage: 30V Type-C Debug special, can use Kinco PC software connection STO Applicable to models that support STO function;
2-channel STO, STO interface can be connected with the safety controller, safety switch, safety sensor, etc., to realize the safety function of the driver
Input voltage range: 24VDC±15%, Input current: 2.3mA(Type), Logic level standard: IEC61131-2 Type1
Input resistance: 10kOhmBus function EtherCAT Support CoE (CiA402 protocol) and CSP/CSV/PP/PV/PT/HM mode, communication speed 100Mbps PROFINET Non periodic parameter read and write; Message 1, message 3, message 5, message 9, message 102, message 105, message 111; Support IRT synchronous mode; Support absolute value encoder; Support DSC dynamic servo control Use environment Working temperature -20℃ 〜 +40℃
Short term storage (within 1 month): -20 ℃~+65 ℃Storage temperature Long term storage (over 1 month): -10 ℃ ~ +55 ℃ Protection class IP65, shaft end (excluding oil seal) IP54 Installation site Dust-free, dry, lockable Installation method Motor flange installation Altitude Less than 3000m, power derating 1.5%/100m between 1000m and 3000m Atmospheric 67kpa〜106kpa Note：■ = A: Without brake B: With brake ▲ = A: Without STO S:With STO FAQs
1. Does Kinco have factories?
Kinco operates 5 offices, 2 factories, and 4 R&D centers.
2. Where is Kinco located?
Kinco Inc. is located in San Francisco, with additional offices in Germany, Japan, and Hong Kong supporting sales and operations.
3. What certifications do Kinco servos hold?
Most Kinco servo products are CE, RoHS, and UL compliant. Some models are currently undergoing the certification process.
4. What is Kinco’s core business?
Kinco specializes in the R&D, manufacturing, and sales of core components for industrial automation and robotics, and also provides integrated hardware and software solutions for digital factory construction.
-
Featured Specs
Weight 2.8 kg Dimensions 160 × 80 × 129.5 mm -
