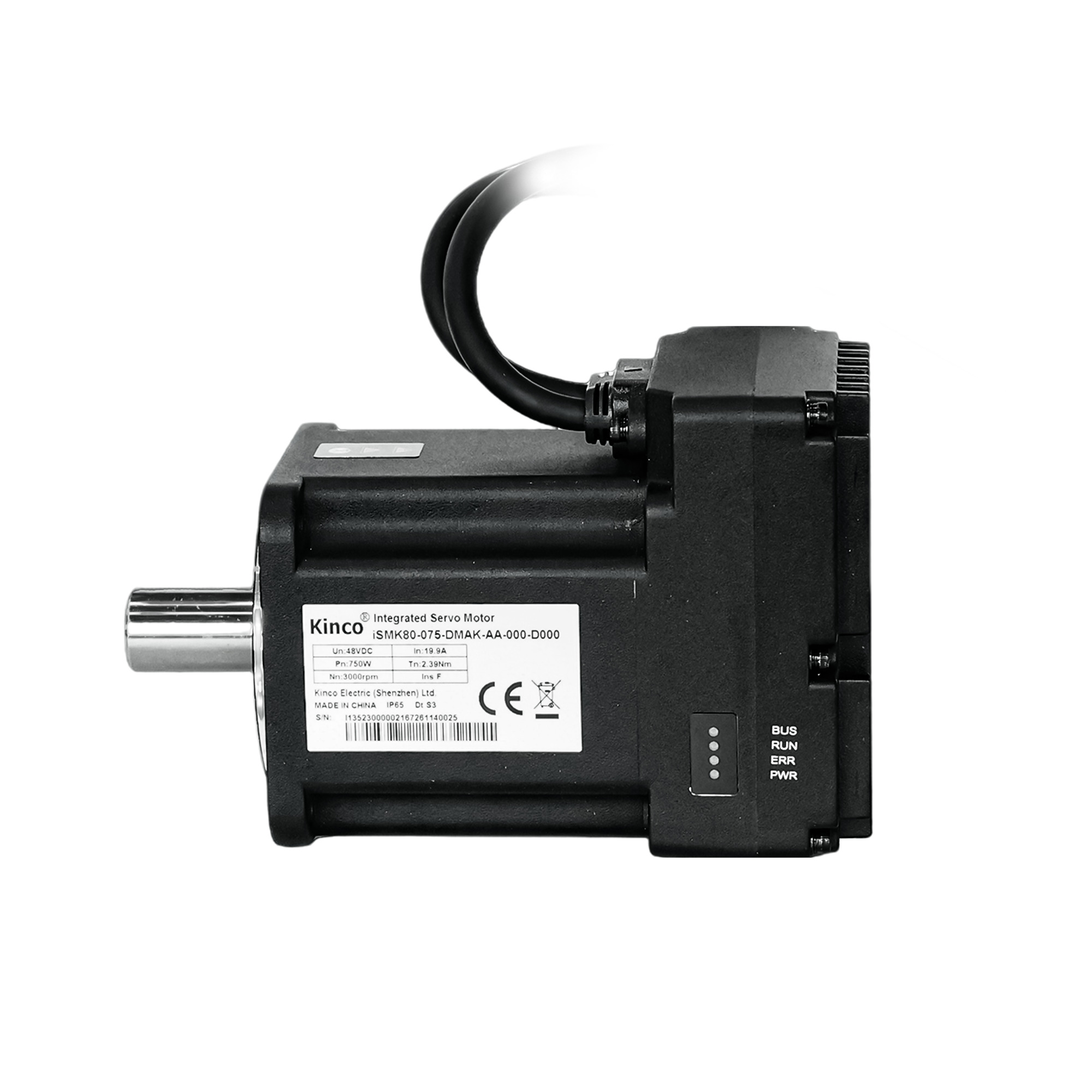

iSMK Series Industrial DC Servo Motor Integrated Unit 2.39Nm Rated Torque, 750w, IP65, Support RS485, CANopen, EtherCAT
Price range: $259.00 through $339.00
-
Description
The iSMK series is a highly integrated servo unit that combines a motor, drive, and encoder, into one compact package. It delivers an impressive three-times overload capacity—surpassing similar servos used in industrial robots—and features low temperature rise, positioning it as a leading choice for logistics robots, autonomous shuttle, medical robotic systems, and other equipment requiring high response speed and positioning accuracy.
Features
· Wide Voltage Input: 24V–60VDC, compatible with low-voltage and battery power supplies.
· Power Options: 400W–750W power range.
· Compact 3-in-1 Design: Minimum length of only 136 mm, reducing installation space by 50%.
· High Overload Capacity: S3 duty cycle with 3x overload, delivering high torque even with an extremely short body length.
· Precise Coaxiality: Ensures alignment between motor and gearbox, reducing noise and failure rates.
· In-House Core Components: Drive, motor, and encoder are all independently developed, eliminating compatibility issues between components from different manufacturers, improving defect control, delivery capability, and lead times.
· Communication Protocols: Supports RS232, CANopen, Modbus RTU, EtherCAT, and others.
· Certifications: CE, RoHS compliant
· Operating Temperature: Model D000 (IP65): -20°C to 40°C Model FT00 (IP67): -40°C to 40°C
High Safety Performance
The iSMK series incorporates multiple safety protections, including overvoltage protection, undervoltage protection, short-circuit protection, motor overheating (I²T) protection, and driver overheating protection, elevating its safety performance to a new level.
All categories
All tags
Filtered byTitle Categories Tags Date Size Type Download CAD files & 2D models of Servo Motor iSMK60 040 DMAK AA 000 D000 1V0 iSMK servo motor CAD & 2D models July 23, 2026 259 KB PDF Download CAD files & 2D models of Servo Motor iSMK60 040 DMAK AA 000 FT00 1V1 iSMK servo motor CAD & 2D models July 23, 2026 161 KB PDF Download CAD files & 2D models of Servo Motor iSMK80 075 DMAK AA 000 D000 1V0 iSMK servo motor CAD & 2D models July 23, 2026 247 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK60 040 DMAK EA 000 D000 1V0 iSMK servo motor CAD & 2D models August 11, 2026 320 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK60 040 DMBK AA 000 D000 1V0 iSMK servo motor CAD & 2D models August 11, 2026 300 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK60 040 DMBK EA 000 D000 1V0 iSMK servo motor CAD & 2D models August 11, 2026 319 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK80 075 DMAK AA 000 FT00 1V1 iSMK servo motor CAD & 2D models August 11, 2026 173 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK80 075 DMAK EA 000 D000 1V0 iSMK servo motor CAD & 2D models August 11, 2026 283 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK80 075 DMBK AA 000 D000 1V0 iSMK servo motor CAD & 2D models August 11, 2026 288 KB PDF Download CAD Files 2D Models Of Servo Motor ISMK80 075 DMBK EA 000 D000 1V0 iSMK servo motor CAD & 2D models August 11, 2026 324 KB PDF Download Datasheet Of ISMK Integrated Servo Drive Motor D000 FT00 K4E40 20260722 iSMK servo motor Datasheet August 18, 2026 1.9 MB PDF Download User Manual of Kinco iSMK Integrated Servo（IO Upgrade Version）20260428 iSMK servo motor User manual July 23, 2026 7.3 MB PDF Download No documents yet, kindly let us know?
Filtered byTitle Categories Tags Date Size Type Download No documents yet, kindly let us know?
Specifications
Model parameter iSMK integrated servo drive motor technical parameters iSMK40-010-DM■K-□A-000-D000 iSMK60-020-DM■K-□A-000-D000
iSMK60-020-DM■K-AA-000-FT00iSMK60-040-DM■K-□A-000-D000
iSMK60-040-DM■K-AA-000-FT00iSMK80-075-DM■K-□A-000-D000
iSMK80-075-DM■K-AA-000-FT00Input Power（VDC) 24V 〜60V Built-in Fuse Null Logic power（VDC) 24V, 1A Output Maximum continuous output current（rms） 4 7 12 23 Peak current (AP) 18 24 48 100 Duty S3-10min-60%（intermittent periodic duty，cycle time 10min，60% working time）;S1 (continuous duty) torque must be derated to 70% Motor part Rated power Pn(W) 100 200 400 750 Rated speed nN(rpm) 3000 3000 3000 3000 Rated torque Ts(Nm) 0.32 0.64 1.27 2.39 Maximum torque Tm(Nm) 0.96 1.92 3.81 7.17 Rotational inertia 0.044 0.17 0.31 0.85 Jm(Kg ·cm ² ) 0.046（With brake） 0.174（With brake） 0.314（With brake） 0.91（With brake） Logic loss power (mW) 900 Energy consumption brake There is no brake circuit inside the driver, and an external brake module is required. Overvoltage alarm voltage The default is 68V ± 2V Undervoltage alarm voltage The default is 18V ± 2V Cooling mode Natural cooling General function Input specification iSMK40 2 digital inputs ，iSMK60&80 4 digital inputs ；High: 12.5VDC 〜 30VDC. Low: 0VDC 〜5VDC. Input impedance: 5K Ω . Input frequency: <1KHz Input function Freely defined as required, the functions are as follows: drive enable, drive error reset, drive mode control, speed loop proportional control, positive limit, negative limit, origin signal, command reverse, internal speed segment control, internal position segment control, emergency stop, start to find the origin, command activation, electronic gear ratio switching, gain switching Output specification 1 digital output, OUT1 for the open collector output, the highest voltage 30V, driving capacity of 100mA Output function Freely defined according to needs, the functions are as follows: driver ready, driver error, motor position to, motor zero speed, motor lock brake, motor speed to, index Z signal appears, maximum limit speed in torque mode, motor lock shaft, motor limit medium, origin finding Protect function Overvoltage protection, undervoltage protection, motor overheat (I2T) protection, short circuit protection, drive overheat protection Bus function RS485 It supports a maximum 115.2Kbps baud rate and can communicate with the controller using the Modbus RTU CANopen It supports a maximum 1Mbps baud rate and can communicate with the controller using the CANopen EtherCAT Support CoE(CiA402 protocol)and CSP/CSV/PP/PV/PT/HM mode，communication speed 100M Apply environment Working Temperature D000 modle：-20℃〜40℃（no freezing）， FT00 modle：-40℃〜40℃（no freezing）
When the operating temperature exceeds 40°C, the driver needs to be deratedStorage temperature Short-term storage (within 1 month)： -20〜65°C
Long-term storage (within 1 month)： -20〜65°CStorage humidity 90%RH（no condensation） Installation method Motor flange installation (vertical side installation) Protection grade D000 modle：IP65, shaft end IP54
FT00 modle：IP67, shaft end IP54Altitude The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation. The maximum working altitude is 3000 meters above sea level. Atmospheric pressure 67kpa〜106kpa Note : ■ = A : Without brake =B : With brake（ Power supply conversion, external unlocking ）
□ = A: RS485、CANopen =E: RS485、EtherCATFAQs
1. Does Kinco have factories?
Kinco operates 5 offices, 2 factories, and 4 R&D centers.
2. Where is Kinco located?
Kinco Inc. is located in San Francisco, with additional offices in Germany, Japan, and Hong Kong supporting sales and operations.
3. What certifications do Kinco servos hold?
Most Kinco servo products are CE, RoHS, and UL compliant. Some models are currently undergoing the certification process.
4. What is Kinco’s core business?
Kinco specializes in the R&D, manufacturing, and sales of core components for industrial automation and robotics, and also provides integrated hardware and software solutions for digital factory construction.
-
Featured Specs
Weight 2.5 kg Dimensions 163 × 80 × 100 mm -
